車床頂尖/頂針

NCH-62精密型高速回轉頂針

HEAVY DUTY PRECISE HIGH SPEED LIVE CENTER

點擊產品圖片放大

資料下載

在線詢盤

產品詳細介紹

類型：回轉式系列
Type: Live centers series
負荷：重
Duty: Heavy

適用：CNC車床及高速車床。

Application: CNC lathe, high speed lathe

用途：適用高速高精密軸心車削加工。

Working Usage: Applicable for high speed and high precision workpiece turning process

結 構：斜角滾珠精密級高速軸承，針狀軸承特殊設計製成。

Structure: Combination of angular contact ball precise high speed bearing and needle bearing

配件：Y型扳手

Accessories: Y type spanner

精準度：0.002mm以內

TIR: Less than 0.002mm

檢測頂尖的尖部跳動精度時，必須在頂尖頂緊工件的狀態下進行打表。

Inspecting the run out accuracy of the center tip must be under the status of holding the workbar tightly.

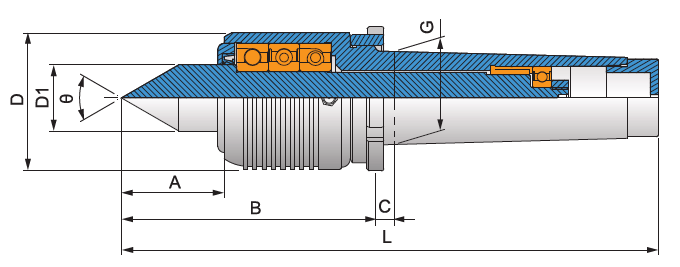

規格 / Specification? ?單位/ UNIT：mm

型式/外表尺寸 Model/Spec	A	B	C	D	D1	G	L	?	軸承最高轉數 Max. RPM	軸承徑向力（載重） Max. radial load	軸承軸向力（推力） Max. axial thrust force
NCH-62-3A	47	116	8	68	31.2	23.825（MT3)	203	60゜	12,000rpm	1,600kg	1,240kg
NCH-62-4A	49	121	9	68	31.2	31.267（MT4)	229	60゜	12,000rpm	2,730kg	1,750kg
NCH-62-5A	49	121	9	68	31.2	44.399（MT5)	256	60゜	12,000rpm	2,730kg	1,750kg

型式/外表尺寸

Model/Spec

軸承最高轉數

Max. RPM

軸承徑向力

（載重）

Max. radial load

軸承軸向力

（推力）

Max. axial thrust force

NCH-62-3A

116

31.2

23.825（MT3)

203

60゜

12,000rpm

1,600kg

1,240kg

NCH-62-4A

121

31.2

31.267（MT4)

229

60゜

12,000rpm

2,730kg

1,750kg

NCH-62-5A

121

31.2

44.399（MT5)

256

60゜

12,000rpm

2,730kg

1,750kg

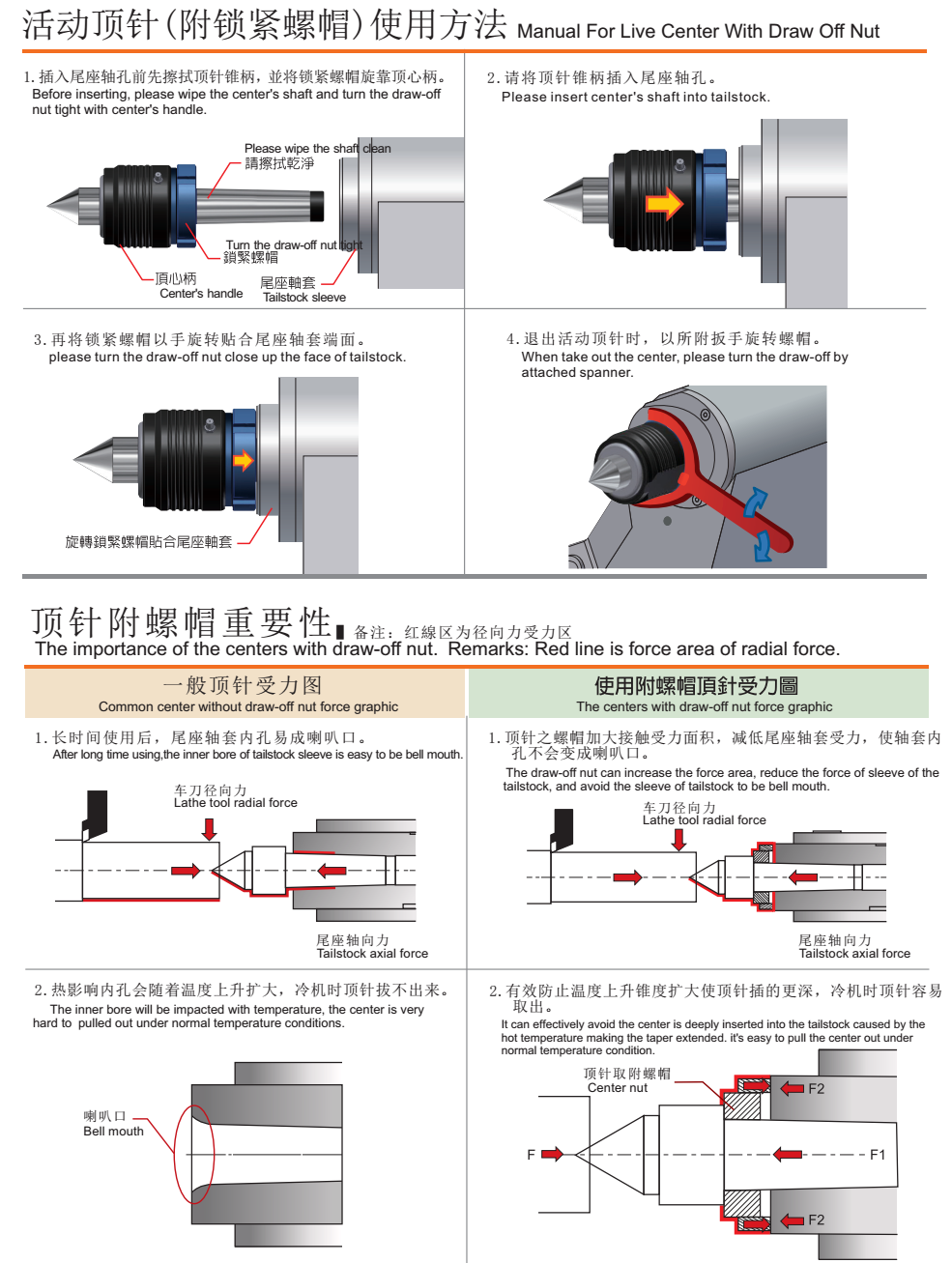

注：
本頂針指定使用SKF-LGMT2專用潤滑油，請勿使用其他不同成分之潤滑油。
產品型號中有“A”的表示頂針有附螺帽
徑向力數據參考：加工件重量+車削力量
配件中的頂針子，型號有“A”的為加長型頂針子。
軸向力據參考：尾座油壓壓力數據
非標需求可定制
保留技術更改的權利

Remarks
1,For the lubricating oil,SKF-LGMT2 is designated,others aren't allowed
2,if "A" is behind the center model name,it denotes a draw-off nut attached.
3,About radial force data, please refer to workpiece weight and machining force.
4,if "A" is behind the center interchangeable tip name,it denotes the tip is extended length.
5,About axial force data, please refer to the hydraulic pressure data of the tailstock.
6,For live centers, SKF lubricating oil is designated, it is waterproof.
7,Customized order can be accepted.
8,Subject to technical changes.
