類型：傳動系列，替換式端面固定
Type: Face driving center,Interchangeable driving head type

適 用：CNC車床、高速車床、自動送料專用機、滾齒機及其他機床。

Application: CNC lathe and high speed lathe and auto feeder and gear hobbing machine or other machine tool

特 點：使用本固定傳動插式頂針可正、反轉車削，使用前須先車削工件端面，才可使用於CNC車床及其他機床，可前后同步車削工件一次加工完成。本頂針特點：頭部可更換多種尺寸，降低成本，使用方便。

Characteristics: Before using this center, Please machine the workpiece ends at first,it can be used to turn forward or reverse direction. it's suitable for front and rear synchronous turning so as to the turning process can be finished by one-time. different size center cone is available, So, it's convenient and cost.

檢測頂尖的尖部跳動精度時，必須在頂尖頂緊工件的狀態下進行打表。

Inspecting the run out accuracy of the center tip must be under the status of holding the workbar tightly.

注 意：本替換式端面固定齒插式傳動頂針，靠尾座足夠壓力，即可傳動車削使用，尾座壓力越高，傳動力越大。

Note: Face driving by the enough pressure from the tailstock, stonger pressure, stronger driving force.

配 件：標準組配件

SC-67-0616
SC-67-0820
SC-67-1025

Accessories:Standard  accessories

SC-67-0616
SC-67-0820
SC-67-1025

規格 / Specification 單位/ UNIT：mm  精準度 TIR：<0.005mm

SC-67-A-MT3 系列

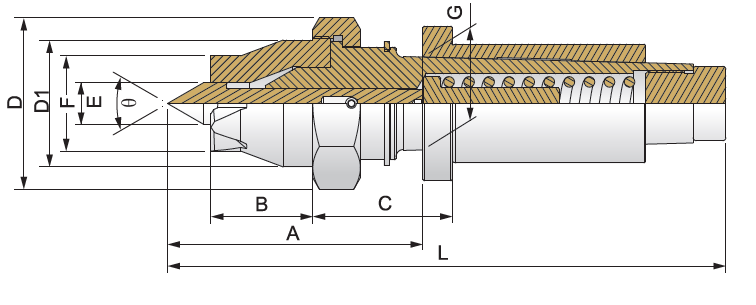

型式/外表尺寸 Model/Spec	A	B	C	D	D1	E	F	G	L
SC-67-A-0408	77.3	34.3	45	57	42.8	4	8	23.825(MT3)	156.3
SC-67-A-0510	77.3	34.3	45	57	42.8	5	10	23.825(MT3)	156.3
SC-67-A-0612	79.3	34.3	45	57	42.8	6	12	23.825(MT3)	158.3
SC-67-A-0616	79.3	34.3	45	57	42.8	6	16	23.825(MT3)	158.3
SC-67-A-0820	79.3	34.3	45	57	42.8	8	20	23.825(MT3)	158.3
SC-67-A-1025	84.6	34.3	45	57	42.8	10	25	23.825(MT3)	161.9
SC-67-A-1225	85.9	34.3	45	57	42.8	12	25	23.825(MT3)	161.9
SC-67-A-1432	85.9	34.3	45	57	42.8	14	32	23.825(MT3)	161.9

Series SC-67-A-MT4 系列 Series

型式/外表尺寸 Model/Spec	A	B	C	D	D1	E	F	G	L
SC-67-A-0408	77.3	34.3	47	57	42.8	4	8	31.267(MT4)	179.3
SC-67-A-0510	77.3	34.3	47	57	42.8	5	10	31.267(MT4)	179.3
SC-67-A-0612	79.3	34.3	47	57	42.8	6	12	31.267(MT4)	181.3
SC-67-A-0616	79.3	34.3	47	57	42.8	6	16	31.267(MT4)	181.3
SC-67-A-0820	79.3	34.3	47	57	42.8	8	20	31.267(MT4)	181.3
SC-67-A-1025	84.6	34.3	47	57	42.8	10	25	31.267(MT4)	184.9
SC-67-A-1225	85.9	34.3	47	57	42.8	12	25	31.267(MT4)	187.9
SC-67-A-1432	85.9	34.3	47	57	42.8	14	32	31.267(MT4	187.9

SC-67-A-MT5 系列 Series

型式/外表尺寸 Model/Spec	A	B	C	D	D1	E	F	G	L
SC-67-A-0408	77.3	34.3	47	57	42.8	4	8	44.399(MT5)	203.3
SC-67-A-0510	77.3	34.3	47	57	42.8	5	10	44.399(MT5)	203.3
SC-67-A-0612	79.3	34.3	47	57	42.8	6	12	44.399(MT5)	205.3
SC-67-A-0616	79.3	34.3	47	57	42.8	6	16	44.399(MT5)	205.3
SC-67-A-0820	79.3	34.3	47	57	42.8	8	20	44.399(MT5)	205.3
SC-67-A-1025	84.6	34.3	47	57	42.8	10	25	44.399(MT5)	208.3
SC-67-A-1225	85.9	34.3	47	57	42.8	12	25	44.399(MT5)	211.9
SC-67-A-1432	85.9	34.3	47	57	42.8	14	32	44.399(MT5)	211.9

非標需求可定制  Customized order can be accepted.
保留技術更改的權利  Subject to technical changes.
